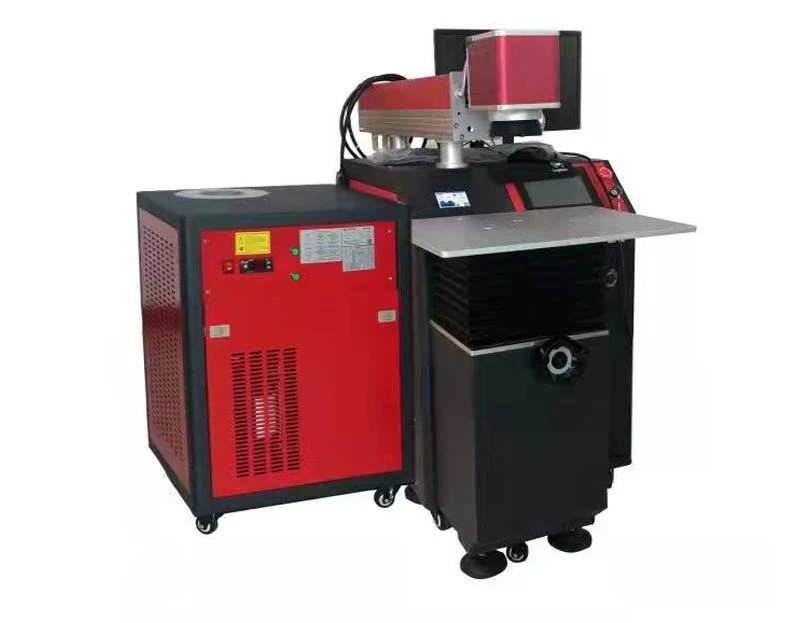

Galvo Laser Welding Machine uses high-energy laser pulses to locally heat the material in a tiny area, and the energy of laser radiation spreads to the interior of the material through heat conduction, melting the material and forming a specific molten pool. It is a new type of welding method, mainly for thin-walled materials, precision parts. It can realize spot welding, butt welding, stack welding, seal welding, etc., with high depth to width ratio, small weld width, small heat affected zone, small deformation, fast welding speed, flat and beautiful weld seam, no treatment or only simple treatment after welding.
|
1. Precision |
|
2. Speed |
|
3. Versatility |
|
4. Minimal Heat Affected Zone Galvo laser welding machines produce minimal heat-affected zones during the welding process. This means that the parts being welded experience minimal to no distortion or warping, ensuring high-quality welds. Additionally, this low HAZ results in a clean, aesthetically pleasing weld. |
|
5. Low Maintenance |
|

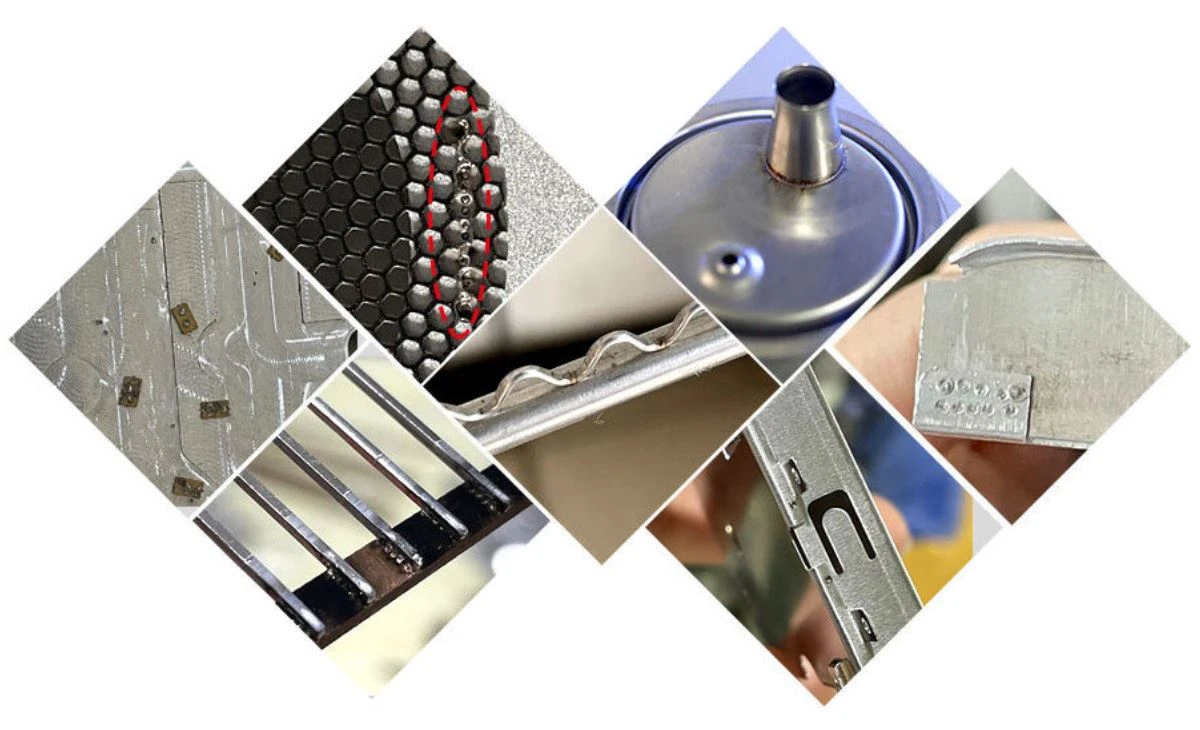

◆ The main applicable areas include high-efficiency laser spot welding or sealing welding of mobile phone shields, metal mobile phone casings, metal capacitor casings, hard disks, micro motors, sensors and other related products. |
| DS-LW200 | |
| 1.064µm | |
| 200W | |
| 120J | |
| 0.3-20ms(adjustable) | |
| 0.2-2mm | |
| 1-100Hz | |
| {{0}}.1-2.0mm | |
| ±0.005mm | |
| 220V,50/60Hz |

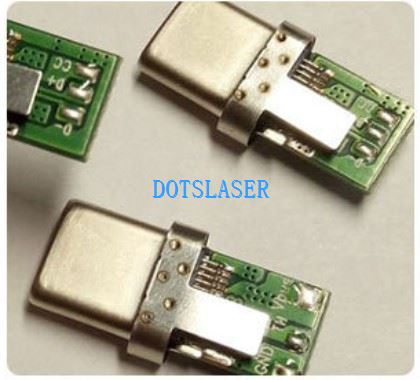

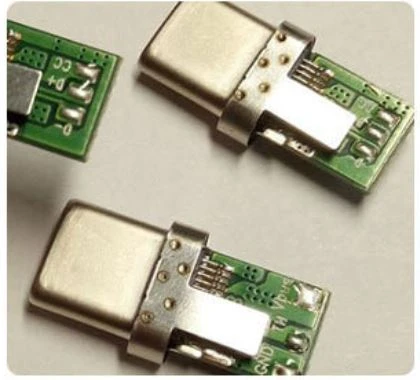

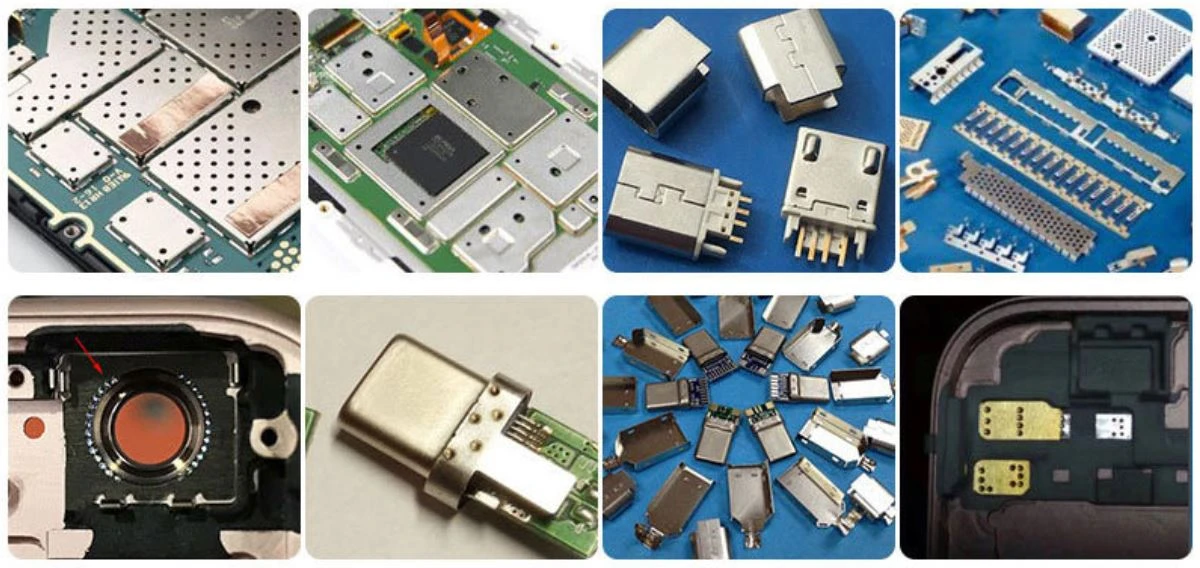

Spot welding of 3C products

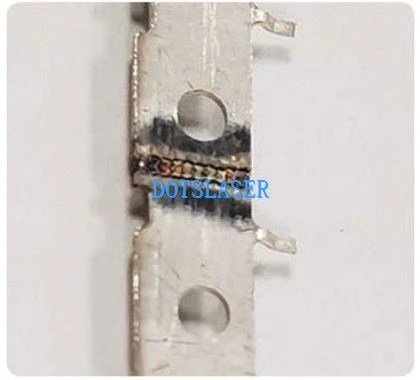

(material:stainless steel,Penetration:0.6mm)

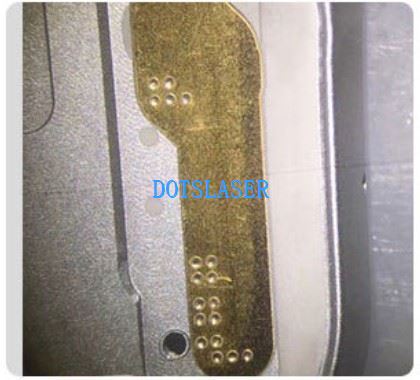

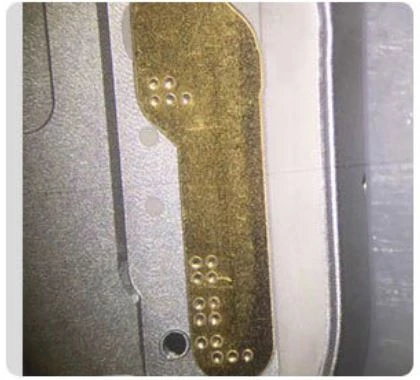

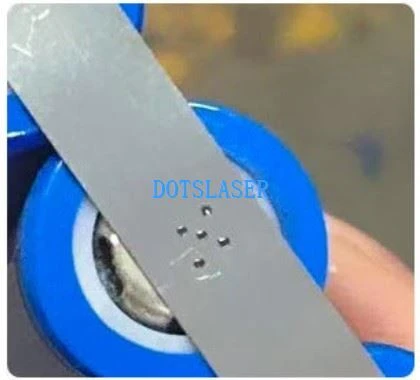

(Material:stainless steel,Penetration:0.8mm)

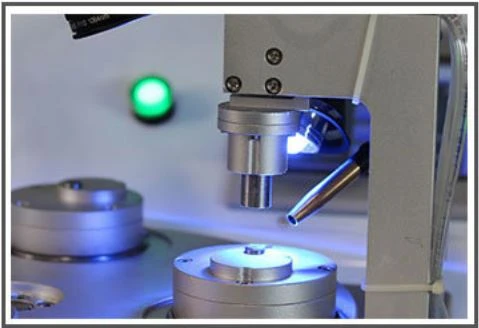

Stable and continuous output, spot welding, stack welding, butt welding, sealed welding, etc.: small welding width, small heat-affected zone, smooth welding, beautiful appearance, and high power density.

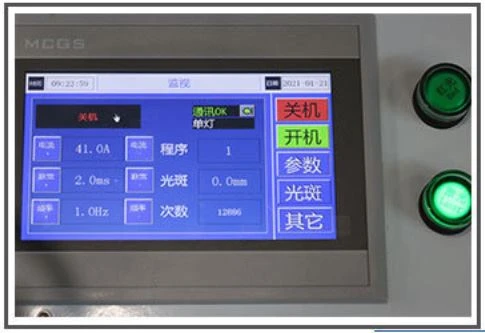

The touch screen is used for human-computer interaction, the interface is intuitive, the display is clear, various parameters are easy to understand and adjust, and it is easy to use.
